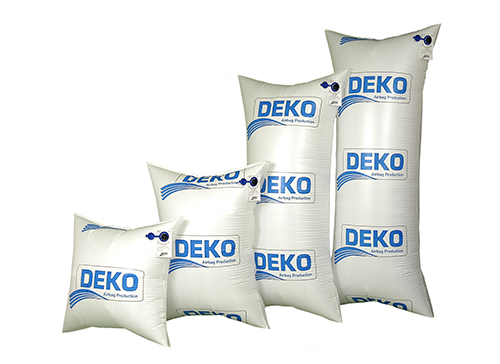

Level-5
Level-5 airbags are designed for all shipping containers – container or trailer on the Railroad or for ocean transport with load weights exceeding 205.000 / 92.986 KG.
DEKO Level-5 airbags are made from a durable poly-woven dunnage material.
- Re-usable
- Re-cyclable
- Waterproof
- Easy to inflate and deflate
- Working pressure (Max.) = 10 PSI / 0.68 Bar
- Burst pressure (Min.) = 21 PSI / 1.44 Bar ( Horizontal: 18 PSI / 1.24 Bar)
- Paper Equivalent: No paper bags equivalent
- They are used for metal coils, paper rolls, plywood and bricks.
| Size (cm) | Quantity per Pallet FRONT | Weight of Pallet (kg) FRONT | Pallet Size |
|---|---|---|---|
| 60x60 | 250 | 100x120x115 | |
| 60x90 | 225 | 100x120x115 | |
| 60x120 | 190 | 100x120x115 | |
| 60x150 | 175 | 100x120x115 | |
| 60x180 | 125 | 100x120x115 | |
| 60x210 | 125 | 100x120x115 | |
| 60x240 | 110 | 100x120x115 | |
| 90x90 | 200 | 100x120x115 | |
| 90x120 | 165 | 100x120x115 | |
| 90x150 | 150 | 100x120x115 | |
| 90x180 | 130 | 100x120x115 | |
| 90x210 | 125 | 100x120x115 | |
| 90x240 | 120 | 100x120x115 | |
| 120x120 | 150 | 100x120x115 | |
| 120x150 | 135 | 100x120x115 | |
| 120x180 | 105 | 100x120x115 | |
| 120x210 | 100 | 100x120x115 | |
| 120x240 | 80 | 100x120x115 | |
| 150x150 | 100 | 100x120x115 | |
| 150x180 | 80 | 100x120x115 | |
| 150x210 | 75 | 100x120x115 | |
| 150x240 | 70 | 100x120x115 |
